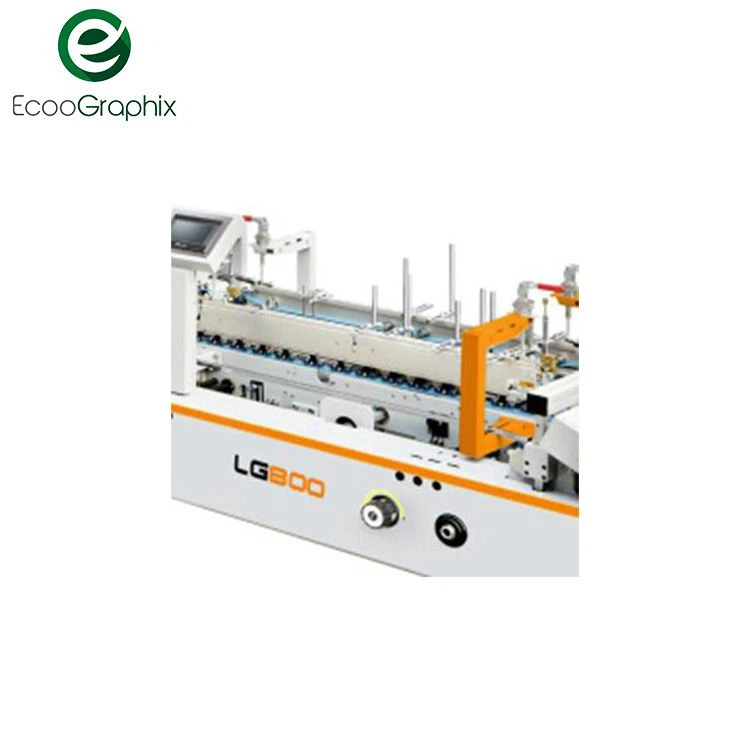

Gliúer Bosca Páipéir Ardluais

Gluer Fillteán Uathoibríoch le 4/6Corda

Múnla: LG800C (seachas córas gliúnna spraeála)

Is meaisín ard-toirte an-chobhsaí é meaisín fillte cartán uathoibríoch (LG800) a fhéadfaidh níos mó brabúis a thabhairt do chustaiméirí.

Tá feidhm chúinne 4/6 aige. Tá gach sraith á rialú ag mótair neamhspleách. Úsáideann sé ESC, PLC, comhpháirteanna leictreonacha allmhairithe, agus trí-trealamh modh rianaithe cláir.

Príomhghnéithe

1) Glacann an meaisín iomlán struchtúr plátaí cruach gearrtha léasair-.

2) Córas spraeála gliú (trí ghunna agus trí braiteoir) roghnach.

3) Coigeartaítear mótair chúiréireachta istigh sa mheaisín.

4) Córas plasma roghnach.

5) Is féidir sonraí próiseála boscaí a shábháil sa chóras rialaithe ríomhaireachta (roghnach).

6) Táscaire suímh (roghnach)

7) Coigeartú inathraithe.

8) Fad -rann fillte réamhfhillte, fillte 180 céim don chéad líne, fillte 135 céim don tríú líne, is furasta iad a oscailt tar éis iad a bheith réamhfhillte.

Sonraíocht:

Méid páipéir

◆ straight line box WL: max 800800 mm min 9060 mm

◆ lock bottom box WL: max 700800 mm min 15060 mm

Feeder

◆ MIKI-pulley infinite speed variator 1/set.

◆ Independent adjust feeding belt, ensure the smoothly paper feeding.1set/6pcs,size: 1026308mm

◆ Independent motor, inverter adjust speed, effectively ensure the balance of paper spacing.

◆ Paper carry rod with high performance Taiwan-made vibrating motor.

◆ Air feeding device.(optional)

Ailíniúaonad

◆ Aligning the askew paper wihch from feeder, make sure the paper running in straight line.

◆ Alignment unit can be adjusted up and down, suitbale for different thickness paper stably.

◆ correct the paper, avoiding the paper going to two sides.

Dhá chrios: 2145344mm

Aonad réamhfhillte

◆ 2 plate conveyor belt structure, segmenting left and right upper belt plate can be adjusted according to product demand, fast and efficient.

◆ three long top courier in this section, 180 degree folding could be preformed

Criosanna Nitta: 1 sraith

sonraíochtaí: 1985243mm-2pcs 3375243mm-2pcs

5000444mm-1 ríomhaire 5000244mm-1pcs 4755304mm-1pcs

Tuairt{0}}aonad glasála

◆ 3 plate conveyor belt board structure, segmental upper belt board function is the same as the prefolding part, eliminate the problems in the production of special-shaped box products effectively.

◆ The upper and middle belt board is detachable, depending on product requirements for disassembly and debugging.

◆ Nitta belts 1set /9 pcs

Sonraíocht:

1985243mm-2 ríomhaire 3375243mm-1pcs

1780243mm-2 ríomhaire 3450244mm- 3pcs

3610304mm-1 ríomhaire

◆ Safety door (Optional)

aonad gluing

◆ The mechanical lower pasting cylinder is designed with separate type of rubber wheel and rubber cylinder, high speed, easy to clean and maintain.

◆ Crashlock, 4/6 corner box ,etc need to equip eletrical spray guns. (recommend 3 or more guns)

◆ width of gluing wheel 4MM (standard), other width could be customized

Aonad fillte

◆ 2 plate conveyor belt board structur.

◆ The left and right outside folding belt speed can be adjusted independently to ensure the molding accuracy.

◆ Wide box type can be matched with middle upper and lower belt plate to ensure stable transportation.

◆ Nitta belts 1set /8pcs

Sonraíocht:

2785243mm-1pcs 4565243mm-1pcs

3175243mm-1 ríomhaire 7320344mm-3pcs

7520354mm- 2pcs

Ag brúaonad

◆ Independend inverter adjust speed, proportional linkage to main engine under automatic model, adjusting separately with the same speed as the main engine under manual.

◆ Upper and lower belt telescopic adjustment is simple and easy to operate.

◆ Equipped with high speed electronic kick counter.

Aonad iompair

◆ In automatic mode, the paper box spacing is set. The pressure belt speed is connected with the belt speed of the main engine in proportion. When photoelectric monitoring the paper box, the leather moves.

◆ In manual mode, the pressure belt is delivered at a constant speed, which is not affected by the machine speed.

◆ The pressure part adopts the pressure type pressing, the pressure control is more accurate, the product bonding effect is more guaranteed.

Feidhm cúinne 4/6 (Roghnach)

◆ All types and most sizes of 4/6 corner boxes can be quickly set up.

◆ the inclined frame according to the page size of the paper box adjustable.

◆ 45 degrees guide plate, suitable for all the size of the paper box.

◆ modular folding hook running track, high speed and high quality production.

Córais leictreacha agus tiomána

◆ Schneider brand inverter is used to realize synchronous speed regulation of the main engine, making the speed change, adjustment, stability and reliability.

◆ Humanized design of hd touch screen, fully consider the operator's convenience.

◆ Schneider brand PLC is adopted, and a number of safety protection devices are added, making the operation of the machine more safe and reliable.

◆ Control panel, layout more reasonable, icon prompt, simple and easy to understand with remote control switch, make the operation more convenient.

Liosta príomhpháirteanna

1.Cuid leictreach

2.Crios

3.Peilimint neomatach

SAMPLAÍ BOSCA
